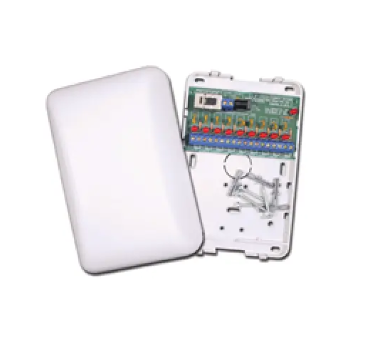

The Elk PD9HC is a power distribution model housed in a plastic wall/box mountable enclosure with 9 x 400mA rated outputs. It accepts a 12VDC input (not included) and distributes it to 9 auto-resetting fused outputs. The source input can be connected using the 2.1mm barrel connector or the terminal screws. This distribution module is perfect for powering cameras, PIR motion detectors, photobeams or similar devices. If more than 400mA current is required, simply connect more than one output channel as needed.
Features:
- Auto-Resetting (PTC) Overload Protection (NO FUSES to REPLACE).
- Master Power On/Off Switch.
- Visual LED Power Indicators on each Output.
- Convenient Test Points for measuring Total Current Draw.
- Lifetime Limited Warranty.
- Paintable White Plastic Housing
