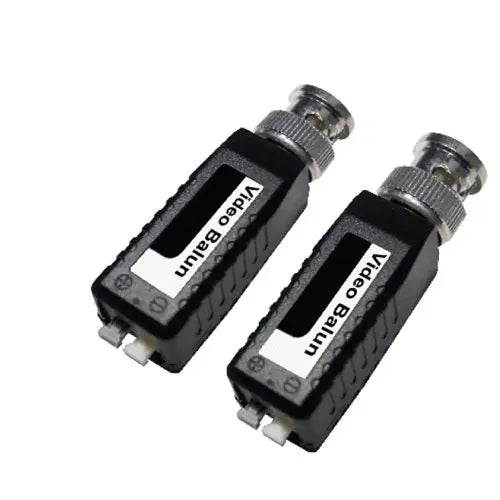

The UltraTech Single-Channel passive video balun enables video transmission over UTP up to 2000' away with passive receivers at standard resolutions, and up to 3000' away with active receivers. Easily transmit UHD resolution video (4K/8MP) via AHD/HD-CVI/TVI signals up to 328' away over a passive connection. Connection distances will vary depending on signal type and resolution. High interference rejection and high transient protection ensures a smooth, full-motion, distortion-free picture.
Push-terminal to BNC connection. Up to 2,000' (600m), 5MP up to 650', 8MP to 328'; up to 3,000' (900m) if used with active receiver. No additional power required, package includes 2x baluns with push terminals. Transmits over UTP, CAT5 / 5E / 6 / 6A.
0E-VBPUSHTMP Specs and Features:
- Full motion video transmission up to 4K resolution
- Push-terminal +/- to BNC
- Up to 2,000' (600m), 5MP up to 650', 8MP to 328'
- Up to 3,000' (900m) if used with active receiver
- Frequency Response: DC to 8MHz
- CMRR: 60dB
- Impedance: BNC 75 Ohm, terminal 100 Ohm
- Operating Temperature: 14°F to 158°F (-10°C to 70°C)
- Dimensions (H x W x L): 0.8'' x 0.6'' x 2.3''
- Weight (Approximate): 0.75 oz
- No power required for transmission, plug-and-play video ready
